Specifications
Details
Product code

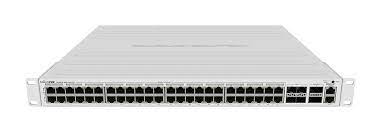

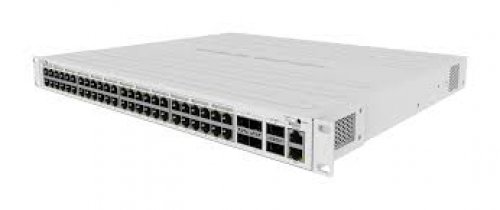

CRS354-48P-4S+2Q+RM
Architecture
MIPSBE
CPU
QCA9531
CPU core count
1
CPU nominal frequency
650 MHz
Switch chip model
98DX3257
Dimensions
443 x 382 x 44 mm
RouterOS license
5
Operating System
RouterOS v7 / SwitchOS
Size of RAM
64 MB
Storage size
16 MB
Storage type
FLASH
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-20°C to 60°C
Suggested price
$999.00

Powering
Details
Number of AC inputs
1
AC input range
100-240
Max power consumption
800 W
Max power consumption without attachments
85 W
Cooling type
4 fans

PoE-out
Details
PoE-out ports
Ether1-Ether48
PoE out
802.3af/at
Max out per port output (input 18-30 V)
1000 mA
Max out per port output (input 30-57 V)
570 mA
Total output current
27A at 26V OR 13.2A at 53V
Total output power
700W

Ethernet
Details
10/100 Ethernet ports
1
10/100/1000 Ethernet ports
48

Fiber
Details
SFP+ ports
4
Number of 40G QSFP+ ports
2

Peripherals
Details
Serial console port
RJ45

Other
Details
CPU temperature monitor
Yes
Current Monitor
Yes
PCB temperature monitor
Yes
Voltage Monitor
Yes

Certification & Approvals
Details
Certification
CE, EAC, ROHS
IP
IP20


Included parts

IEC cord

Cable managment brackets

Rackmount ears (CRS354)

Rackmount rear support ears (1/2)

Rackmount rear support ears (2/2)

K-48 fastening set
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
